MSM-Workstation
Create the First Set of Windows

Go back to the previous page in this sequence
Go back to the start of this chapter
Go back to the first page of this tutorial

Invoke the third window from the command button in the first

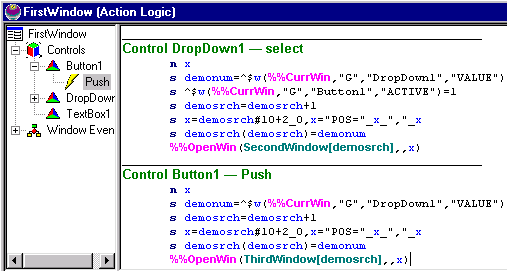

With all this in place, the "push action logic" for the button can invoke the third window in very much the same way as the second window was invoked from the selection box.

(Click here to cut and paste this code.)

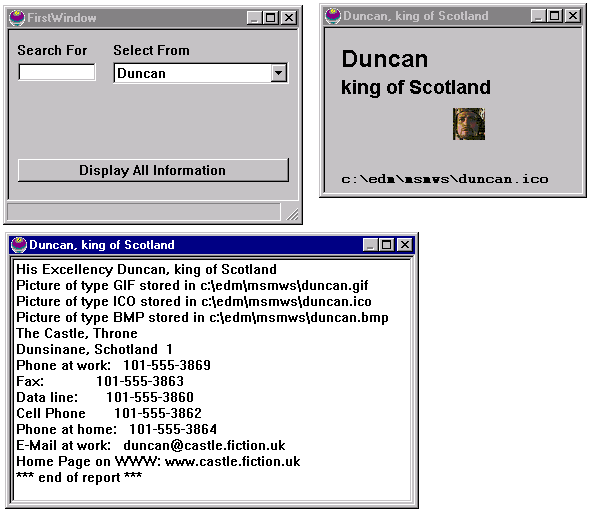

A test run will show the newly available display capability:

After this, of course, many details can still be added to any of these three windows. For the purpose of demonstrating the creation of a first (meaningful) window, the current capabilities should be sufficient. Later chapters in this tutorial will enter into more detail on the further issues around the building and usage of windows.

Go on to the next page in this sequence.
