MSM-Workstation
Create the First Set of Windows

Go back to the previous page in this sequence
Go back to the start of this chapter
Go back to the first page of this tutorial

Fill in the details

In order to fill in the desired values for the properties that received default values of [Title], the main window of MSM-Workstation contains a number of fields that can effect this result.

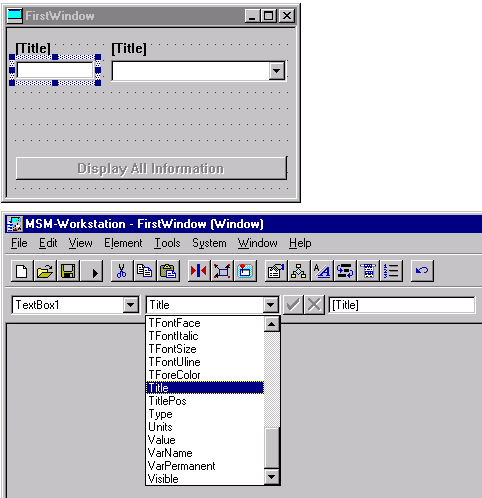

When the mouse cursor is moved over the text box that was entered first, and the left mouse key is clicked once over this component, the bar under the "tool-bar" (the line of icons under the menu) will be updated to reflect properties of the "currently selected" component.

The left-most box contains the name of the component, the middle one contains the name of a property, and the right-most one contains the current value of the property that is identified in the middle box.

Using the drop down list in the middle box, the property Title is selected, and using the right-most text box, the desired value is entered

When a value is entered into this box, the two icons between the name of the property and its value will be highlighted. When the green checkmark sign is clicked (or the enter-key is pressed), the new value will be assigned to the property, and when the red "X" is clicked, the original value is restored.

Similarly, the text for the Drop Down List can be adjusted.

Go on to the next page in this sequence.
